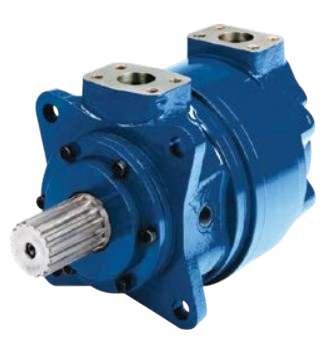

Rineer | MV057 Series Motor

Medium-speed, high-torque hydraulic motor applications, delivering unmatched reliability in challenging mobile equipment environments. With a unique and compact design, high start-up and stall torque, and a through-hole configuration, this series is ideal for direct drive systems requiring dependable performance.

Key Features of High-Torque Vane Motors

• Single Rotary Group Motors: 2-port motors available in displacements of 48 in³ (787 cm³) or 55.5 in³ (909 cm³) for precise application fit
• Double Rotary Group Motors: 4-port motors with displacements ranging from 96 in³ (1573 cm³) to 111 in³ (1819 cm³) for enhanced power
• Superior Torque Efficiency: Delivers start-up and stall torques up to 94% of theoretical value for consistent performance
• Steady Speed Performance: continuous operating speeds up to 500 RPM
• High Power Output: up to 574 HP (428 kW) to tackle demanding tasks
• Optional Through-Hole Shaft: Provides flexibility for specialized applications
• Customizable Design: Tailored for direct drive applications
• High Power-to-Weight Ratio: maximizes power output while minimizing weight
• Rugged Reliability: Built for high reliability in harsh environments
• Extended Service Life: Durable construction ensures long-lasting operation with minimal maintenance
