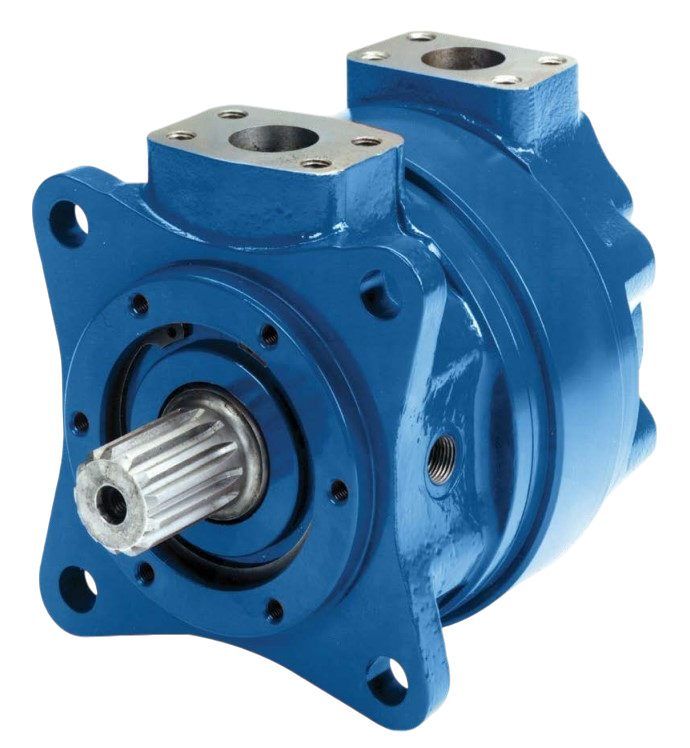

Rineer | MV037 Series Motor

Medium-speed, high-torque hydraulic motor applications, delivering unmatched reliability in challenging mobile equipment environments. With a unique and compact design, high start-up and stall torque, and a through-hole configuration, this series is ideal for direct drive systems requiring dependable performance.

Key Features

• Versatile Displacement Options: (6) fixed displacement rotating groups from 12 in³ (197 cm³/rev) to 37 in³ (606 cm³/rev) for diverse application needs
• Double Stack Motors: Dual-port motors with displacements from 64 in³ (1,049 cm³/rev) to 74 in³ (1213 cm³/rev) for enhanced power output
• Two-Speed 4-Port Motors: Displacements from 24 in³ (393 cm³/rev) to 74 in³ (1,213 cm³/rev), supporting two-speed operation with external valving
• High Torque Efficiency: Start-up and stall torque up to 94% of theoretical torque for reliable power delivery
• Robust Speed Capability: speeds up to 1,000 RPM for dynamic performance
• Powerful Performance: up to 450 HP (336 kW) to handle the most demanding tasks
• SAE ‘D’ Mounting Compatibility: Conforms to SAE ‘D’ mounting specifications
• Customizable Design: Tailored for direct-drive applications
